PCS-PC : Portable Pneumatic Pressure Calibrator/Controller

PCS-PC is pneumatic pressure generator and controller for vacuum to 10 MPa pneumatic pressure calibration.

PCS-PC has a built-in 2 liters gas reserve cylinder and regulating primary pressure control and volumecontroller precise control a secondary pressure which has equalize function. At high pressure, PCS-PC can control high pressure with less effort.

Therefore PCS-PC is best portable pneumatic pressure generator/controller in the world.

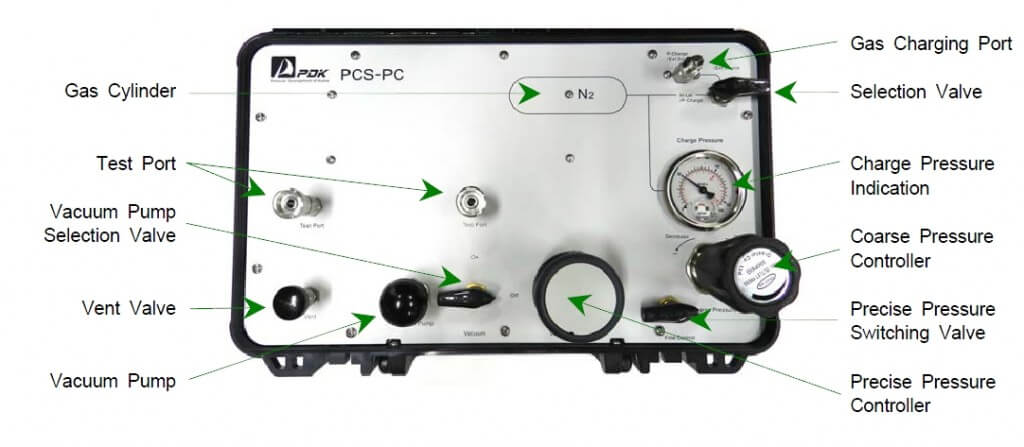

PSC-PC also has a built-in double acting type vacuum pump and it generates up to -95 kPa (-713mmHg) which has the best degree of a vacuum in its class. Upper side of PCS-PC equipped quick connectors and adapters for quick and easy to connect DUT

It has 2 m of high pressure flexible tubing for quick and easy charging pressure on 2 liters gas cylinder.

Use

  1. Portable pressure calibration
  2. Simple calibration for common calibration lab
  3. Calibrate pressure gauge for pressure measuring instruments retail business
  4. Pressure generating and controlling for pressure test lab
  5. Pressure calibration for laboratory
  6. For pneumatic high pressure calibration

Feature

  1. Built-in 2 liters gas cylinder(charge up to 15 MPa)
  2. Up to 10 MPa pressure generate and control
  3. Built-in double acting type vacuum pump (-95 kPa)
  4. Built-in equalize function volume controller
  5. Include fitting adapter set

Specification

Features Details
Pressure Range -95 kPa to 10 MPa
Control Accuracy 0.01 kPa
Built-in Gas Cylinder 2 litres
Vacuum Pump Double acting type manual vacuum generation pump 95 kPa (-713 mmHg)
Volume Controller Equalize function volume controller
Pressure Port 1/4″ SWG Quick Connector Body
Weight 10 kg
Size 450 mm(W) x 360 mm(D) x 170 mm(H)
Ordering Information PCS – PC Portable Pressure Generator / Controller
Range 2 MPa: -0.095 to 2 MPa
5 MPa: -0.095 to 5 MPa
10 MPa: -0.095 to 10 MPa
Option Test Gauge 0.05 %, 20 bar
