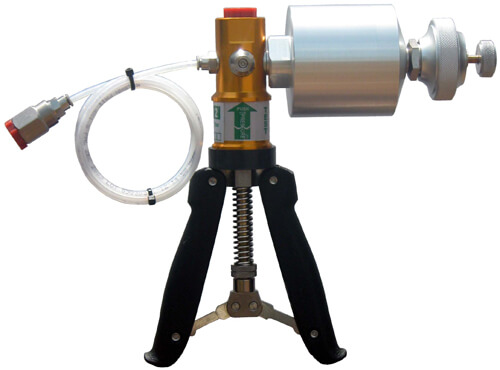

PHP2

Hand held ModelCombined – Vacuum & Low Pressure Hand Pump

Ideal tool for checking & Calibration of Low / Very Low Pressure Digital Indicators, Manometers, Inclined Manometers, Analog (Capsule) Gauges, Draft Gauges, Differential Pressure Transmitters, Pneumatic Loops etc.

Generates Low / Very Low Pressure / Vacuum with High Resolution / Sensitivity achieved thro’

Fine Adjustment Vernier & built-in Volume Chamber

Feature :
  1. Compact, Light Weight, Hand Operated
  2. Combined Vacuum & Low Pressure Pump with Pressure / Vacuum Changeover option
  3. Generation (Range) of
    Pressure : Upto 2 Bar
    Vacuum : Upto 0.9 Bar
  4. High Sensitivity / Resolution
  5. Fine Adjustment Vernier with built-in Volume Chamber to realize High Resolution / Sensitivity of around 0.05 mBar (0.5 mmWC
  6. Very Low Leakage rate
  7. Flexible Nylon Hose (1 Meter) with Swivel Adaptor to connect devices under test
  8. Test Connection Port : 1/4″ (F) BSP Gauge / Indicator Connection Port : 3/8” (F) BSP
  9. Weight (approx.) : 1.1 Kg.
  10. Instrument Dimension (H x W x D) : 230 x 220 x 70 mm

Specification :

Features Details
Ranges -0.9 Bar Vacuum to 2 Bar Pressure
Medium Air
Sensitivity / Resolution 0.05 mBar / 0.5 mmWC
Instrument Dimension (H x W x D) 230 x 220 x 70 mm
Instrument Weight 1.1 Kg.
Standard Delivery:
  1. Basic Pump
  2. Nylon Hose (1 Meter)
  3. Set of Seals
  4. Conformance Certificate
  5. Instruction Manual
  6. OPTIONAL :
  7. Set of Adaptors – BSP / NPT
  8. Carrying Case (Soft)
  9. Analog / Digital Pressure Gauges
  10. Quick Release Coupling
  11. Spare Seal Kit
