Model 03: RTD Calibrator

RTD Calibrator Portable, Handy, Easy to carry & Sturdy Case with gripBasic Accuracy : ±0.05% F.S.Capability to Measure & Simulate Resistance & RTD Readings

Compact, Light Weight Unit with Holster

Selectable Temperature Output Readings (in °C / °F)

Measurement & Simulation of : RTD Type: Pt100 : -200 to 850°C

Cu50 : -50 to 150°C

Resistance : 400 Ohm

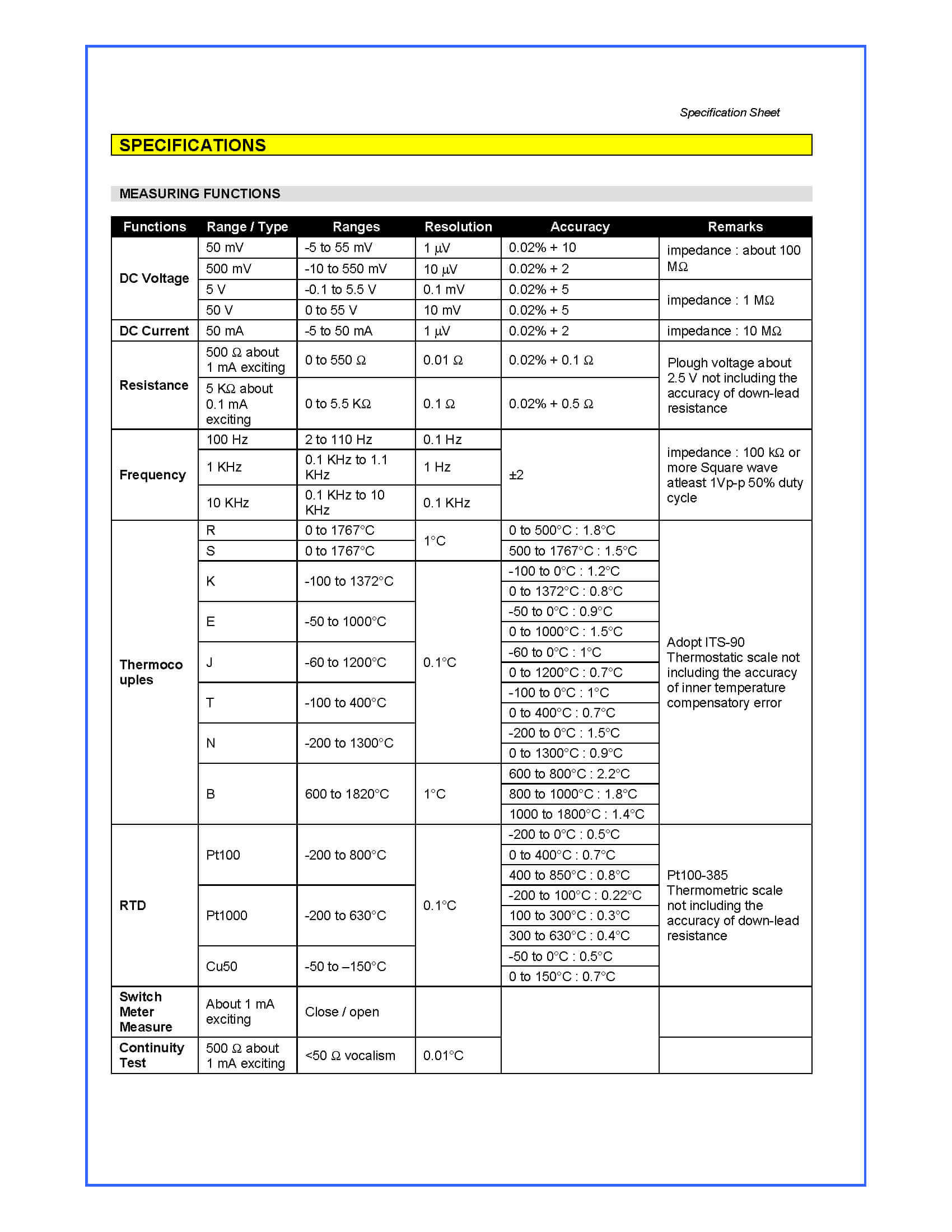

Measuring Functions :

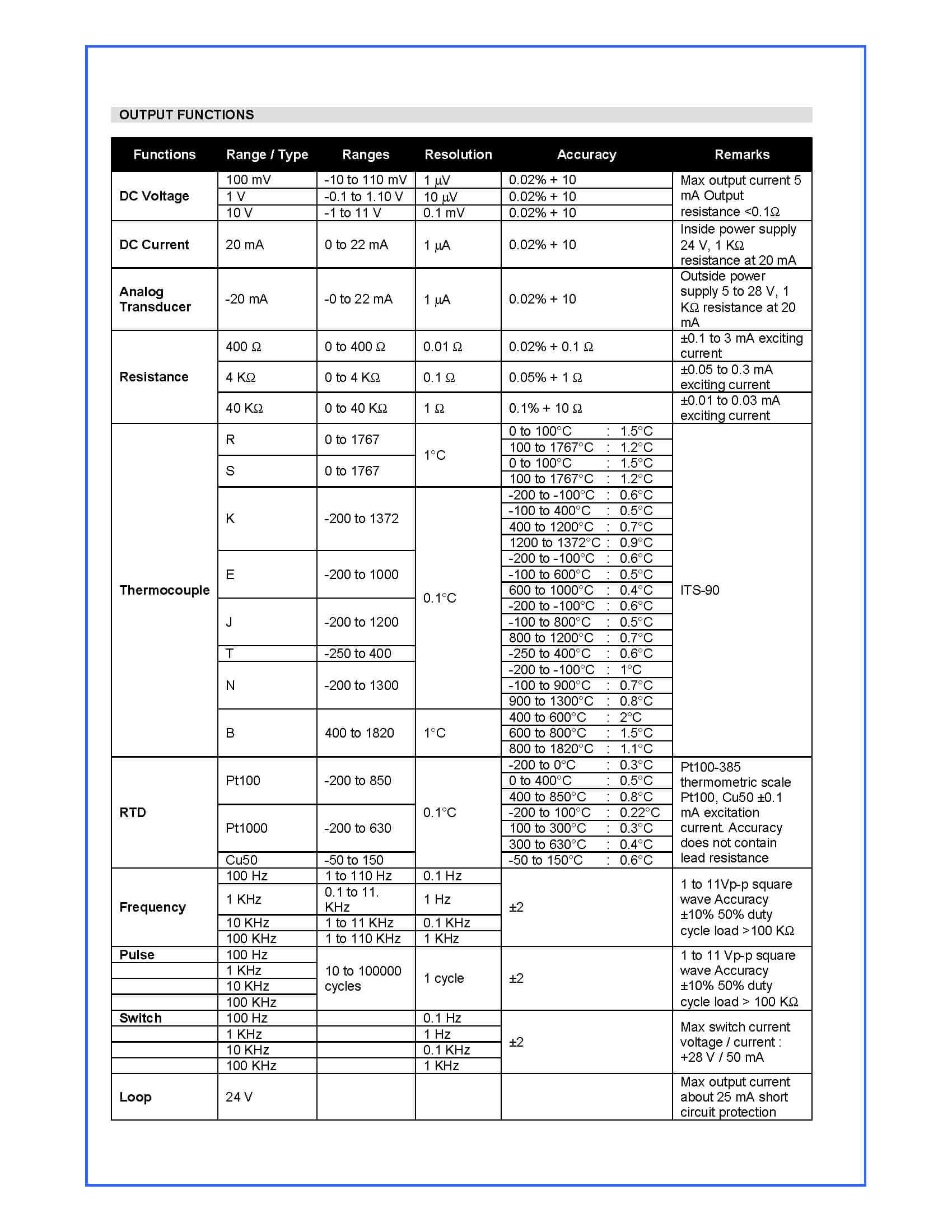

Output Functions
Standard Delivery:
  1. RTD Calibrator – Model : Nagman 03
  2. 9V Alkaline Battery
  3. Operation Manual
  4. Test Leads
  5. Traceable Calibration Certificate
Optionals Accessories:
  1. Calibration Certificate from NABL Accredited – as per ISO/IEC 17025:2005 Laboratory
