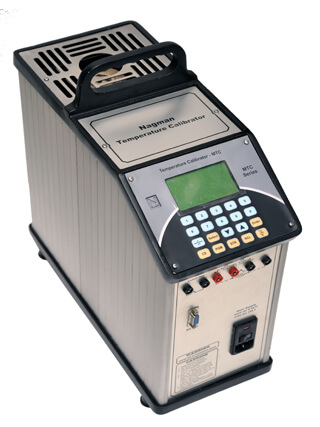

METCAL 650 (Low & Medium Temperatures)

Microcontroller based Medium Temperature Calibrator with Temperature Range Ambient to 650°C, Accuracy ±0.6°C & capability to measure RTDs, Thermocouples, mV / mA & Ohms signals. Specially designed for use in Metrological Industry.
Details:
  1. Metrological Dry Block
    Medium Temperature Calibrator
  2. Portable / Bench-top Precision Dry Block Calibrator with Multihole InterchangeableThermowells
  3. Ideal for quick / fast Site Calibration of RTDs / TCs / Bi-Metal Thermometers, Temperature Switches / Indicators etc. in Industrial & Marine Applications
  4. Range : 50°C to 650°C
  5. Accuracy : ±0.4°C
  6. Advanced – Micro-controller based Technology
  7. Heavy Duty Portable / Bench-top Model
  8. High Accuracy, Resolution & Stability
  9. 128 x 64 Graphic Display(multi information Display)
  10. Measurement Capability for TC, RTD, mV / mA / V & Resistance Signals
  11. Touch Membrane Keypad
  12. Switch Test Contact Measurement
  13. Multi-hole Thermowell Inserts
  14. RS-232 Interface & Calibration Software
  15. Count down timer (Shows when unit is stable)
  16. Stability Indicator
  17. High Accuracy, Resolution & Stability with Measurement Capability for mV / V / mA, Resistance TC (ISA Types : J, K, R, S, N),
  18. RTD (Pt100,Pt200,Pt500,Pt1000 : IEC Standard) Signals

Specification METCAL 650 :

Features Details
Range 50°C to 650°C
Resolution 0.01°C
Accuracy ±0.4°C
Stability ±0.04°C
Stabilization Time 15 Minutes
Temperature Readout °C / °F Switchable
Axial Uniformity (40 mm) ±0.4°C
Radial Uniformity ±0.04°C
Well Diameter 30 mm
Immersion Depth 150 mm
Heating Time (50 to 650°C) 36 Minutes
Cooling Time (650 to 100°C) 75 Minutes
Switch Test facility / Supply Provided 5 V DC (open)
Interchangeable Thermowells Multihole to suit 2 x ¼” & 1 x ½” Probes. Other Sizes available as optional
Housing / Mounting Bench-top
Power Supply 230V AC / 50 Hz & 115V
AC / 60 Hz – Selectable
Instrument Weight 11 Kg
Thermocouples ISA Types J, K, R, S, N Pt100 IEC Std
RTD Pt100
mA 0 to 25 mA
mV 0 to 100 / 1000 mV
Volt 0 to 10 V
Resistance 0 to 500 Ω / 3.5 KΩ

Measurement : Range, Resolution & Accuracy

Type Range Resolution Accuracy
mV (Low) 0 to 100 0.001 ±0.025% F.S.
mV (High) 0 to 1000 0.01
Volts 0 to 10 0.0001
mA 0 to 25 0.0001
Ohms 0 to 500 0.001
KOhms 0 to 3.5 0.00001

Measurement : Range, Resolution & Accuracy

Type Range Resolution Accuracy
Type J -100 to 1200 0.1 ±0.1% F.S.
Type K -60 to 1260
Type R 150 to 1760
Type S 170 to 1760
Type N 0 to 1300
RTD Pt100 -100 to 850 0.01 ±0.05% F.S.
RTD Pt200 -100 to 600
RTD Pt500 -100 to 530
RTD Pt1000 -100 to 850
