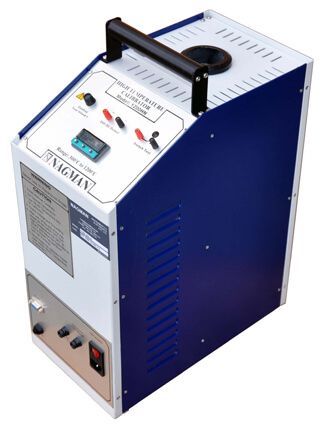

Model 1200 HN (high & Very High Temperatures)

High Temperature Ceramic Dry Block Calibrator withTemperature Range from 300°C to 1200°C & Accuracy ±3°C.Semi-Portable Model

Ideal for Steel, Glass, Metallurgical Industries, Cement Plants, Refineries, Fertilizer Plants, Thermal Power Stations etc.

Stable High Temperature Source (1200°C) for Calibration of Multiple (upto 6) Sensors at High Temperature

Feature :
  1. Range : 300°C to 1200°C
  2. Accuracy : Better than ±3°C *
  3. Cost effective High Temperature Source (Max. : 1200°C)
  4. Multihole / Interchangeable (Thermowell) Inserts to suit
  5. High Stability & Accuracy
  6. Auto-tune PID Control
  7. Forced Air Cooling provision
  8. RS-232 Computer Interface
  9. “Caltemp” Calibration Software – Optional

Specification :

Features Details
Range 300°C to 1200°C
Resolution 1°C
Accuracy Better than ±3°C
Stability Better than ±0.5°C (below 600°C)
Stabilisation Time 20 Minutes (above 500°C)
Temperature Readout °C / °F Switchable
Well Diameter 45 mm
Immersion Depth 150 mm
Heating Time (to max) 90 Minutes
Cooling Time 45 Minutes
Multihole Thermowells 4 x 7 mm + 3 x 9 mm or to suit
Switch Test facility / Supply Provided / 5 VDC (open)
Power Supply / Consumption 230V AC / 50 Hz / 1800 W
Temperature Control Auto-tune PID Control
Forced Air Cooling Provision available
Transmitter Power Supply 24V DC
Instrument Dimensions (W x D x H) 205 x 365 x 480 mm
Instrument Weight 16 Kgs.
Standard Delivery:
  1. Basic Instrument
  2. Cable for Thermostat Switch Test
  3. Mains Cable
  4. Insertion Tube – Multihole
  5. Tool for Insertion Tube
  6. Spare Fuses
  7. 1/4” BSP (F) Hose Adaptor with 6 mm Hose (1.5 Meter Length)
  8. RS-232 Computer Interface
  9. Traceable Calibration Certificate
  10. Instruction Manual
Optional Accessories:
  1. “Caltemp” Calibration Software
  2. 115V AC / 60 Hz Model
  3. Calibration Certificate from NABL Accredited – as per ISO/IEC 17025:2005 Laboratory

** Dry Compressed Air required (@ 7 Bar).

Consult us for Special Heavy Duty Model with Dry Block 70 mm Dia & Immersion Depth 250 mm to accommodate Multiple Inserts at a time & an Interchangeable Thermowell.

Ideal for calibration of longer & bulky Temperature Probes / Assemblies – consult us with specific requirement.
