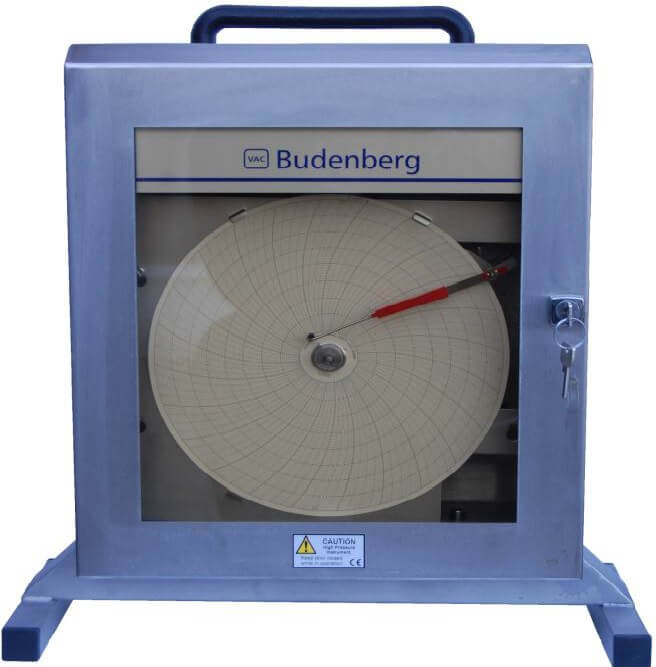

A product line of chart recorders for accurate and reliable measurement for the recording of pressure and temperature in a wide varietyof applications.
The robust construction of Budenberg Chart Recorders in either 316 Stainless Steel or 304 Stainless Steel, make these an ideal unit for the arduous applications of the offshore oil and gas industry.
Budenberg Chart recorders are available in 240mm diameter chart formats with a variety of sensors and mounting configurations tailored to suit customer applications.The tool kit is supplied as standard with all Dead Weight Testers.
Specification
| Features | Details |
|---|---|
| Accuracy Class | ± 1% of full scale deflection ± 0.5% of full scale deflection (optional) |
| Range | 0 to 1 bar up to 7,000 bar or 100,0000 lb/in² 0 to 80 ̊C up to 600 ̊C |
| Case | 304 Stainless Steel Chart Drive: High Quality Spring Wound Clock UL Certified: Battery operated |
| Chart Drivers | 2,4,8,12,24 hour, 7 day |
| Inking System | Disposable Fiber Tips Pens: Red, Green or Blue |
| Mounting | Free Standing with lifting handle and non-slip rubber feet, Panel/wall mounted |
| Ambient Temperature Range | operating : -35 to +50 deg. C storage : -40 to +90 deg C |
| Process Connection | 1/4″ NPT, HF4 Female |
| Pressure Element | 316 stainless stell seamless bourdon or coil tube |
| Monel bourdon or coil tube option | |
| Option | Pneumatic Alarm Lockable or waterproof locking handle |
| Temperature Effect | Variation in indication caused by temperature shall not exceed +/- 0.04x(t2-t1)% of the span, where : t1 is the reference temperature in degrees Celcius t2 is the ambience temperature in degrees Celcius |
| Systems | Single, Double or Triple pen available |
| Traceablility | All instrument are individually calibrated, A Certificate of Conformity is suppliedFree of Charge |
| Certification Available | BS EN 10204 3.1 Materual Certification |
Point by point certificate
| No. of Pens | Pen Configuration Available | |
|---|---|---|
| Single Pen | Pressure | Temperature |
| Dual Pen | Pressure / Pressure | Pressure / Temperature |
| Triple Pen | Pressure / Pressure / Pressure | Pressure / Pressure / Temperature |
